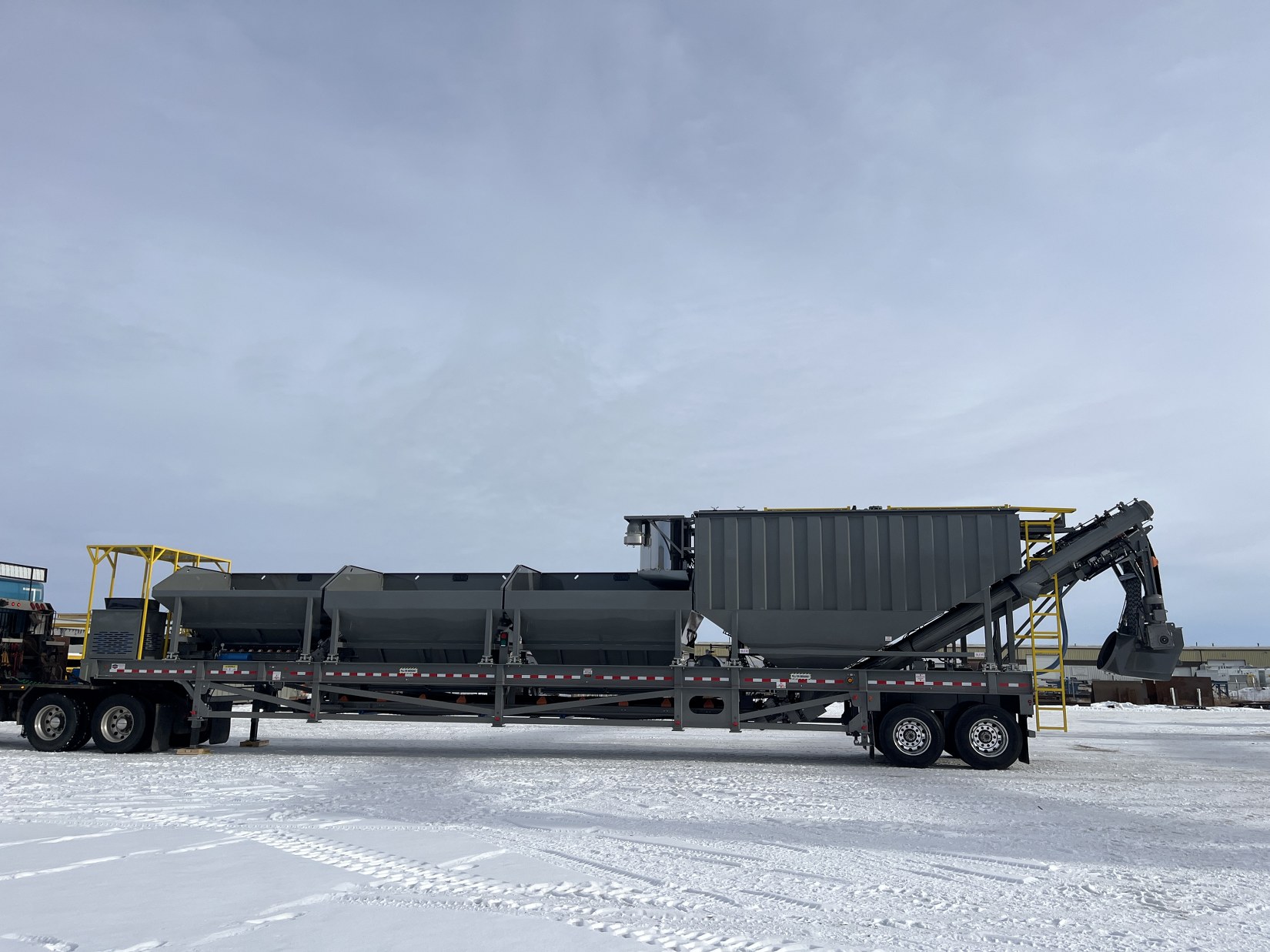

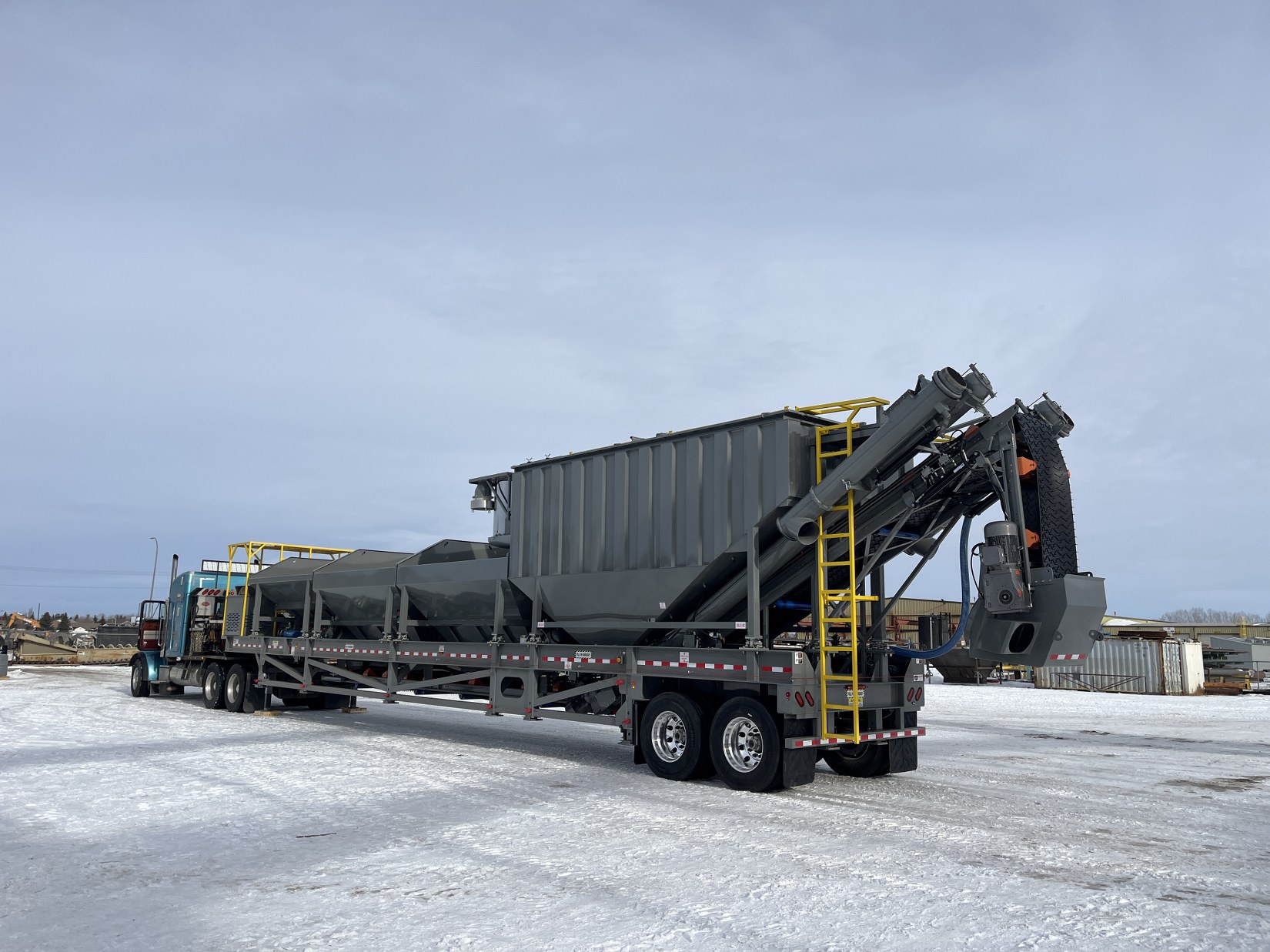

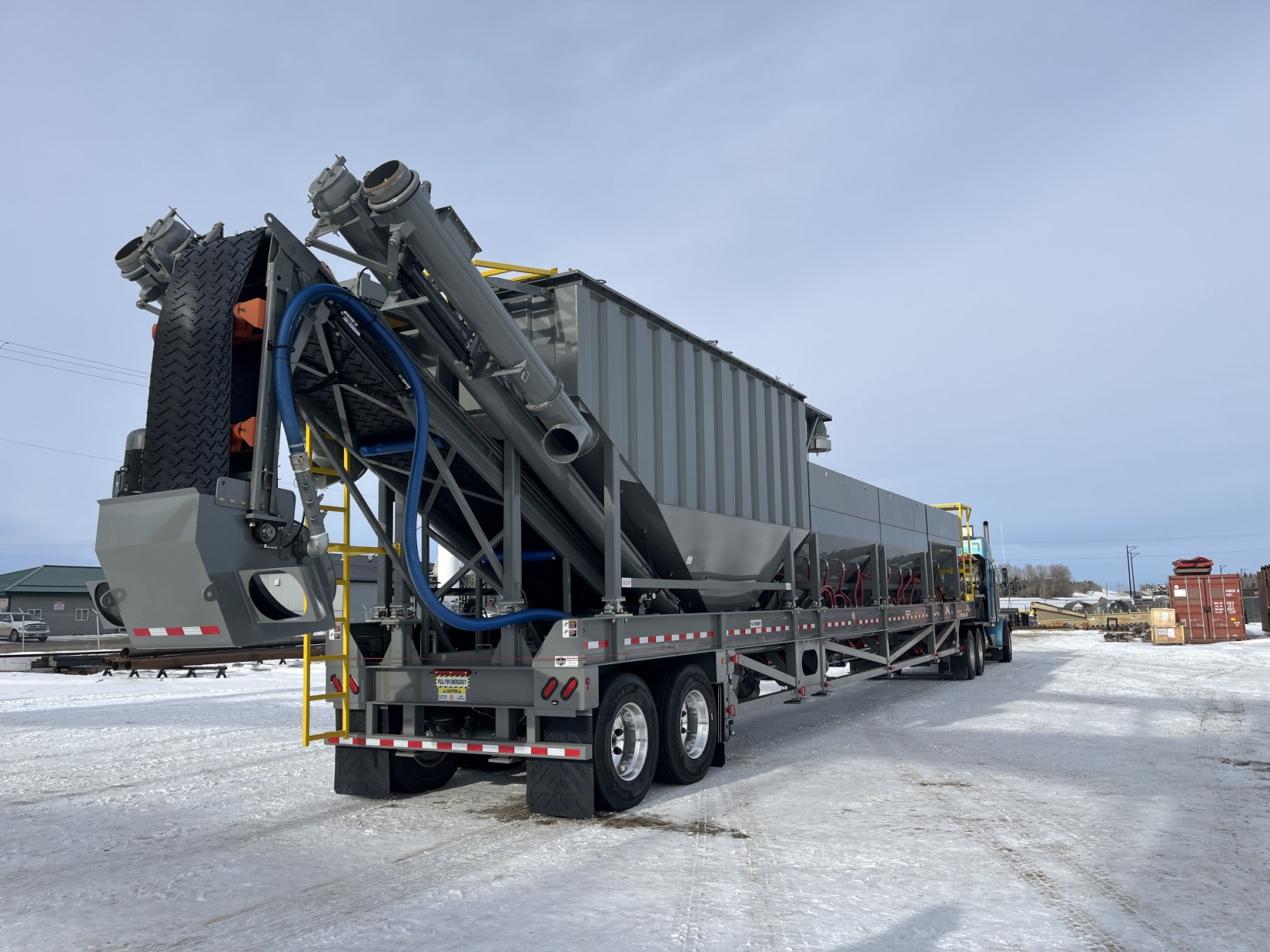

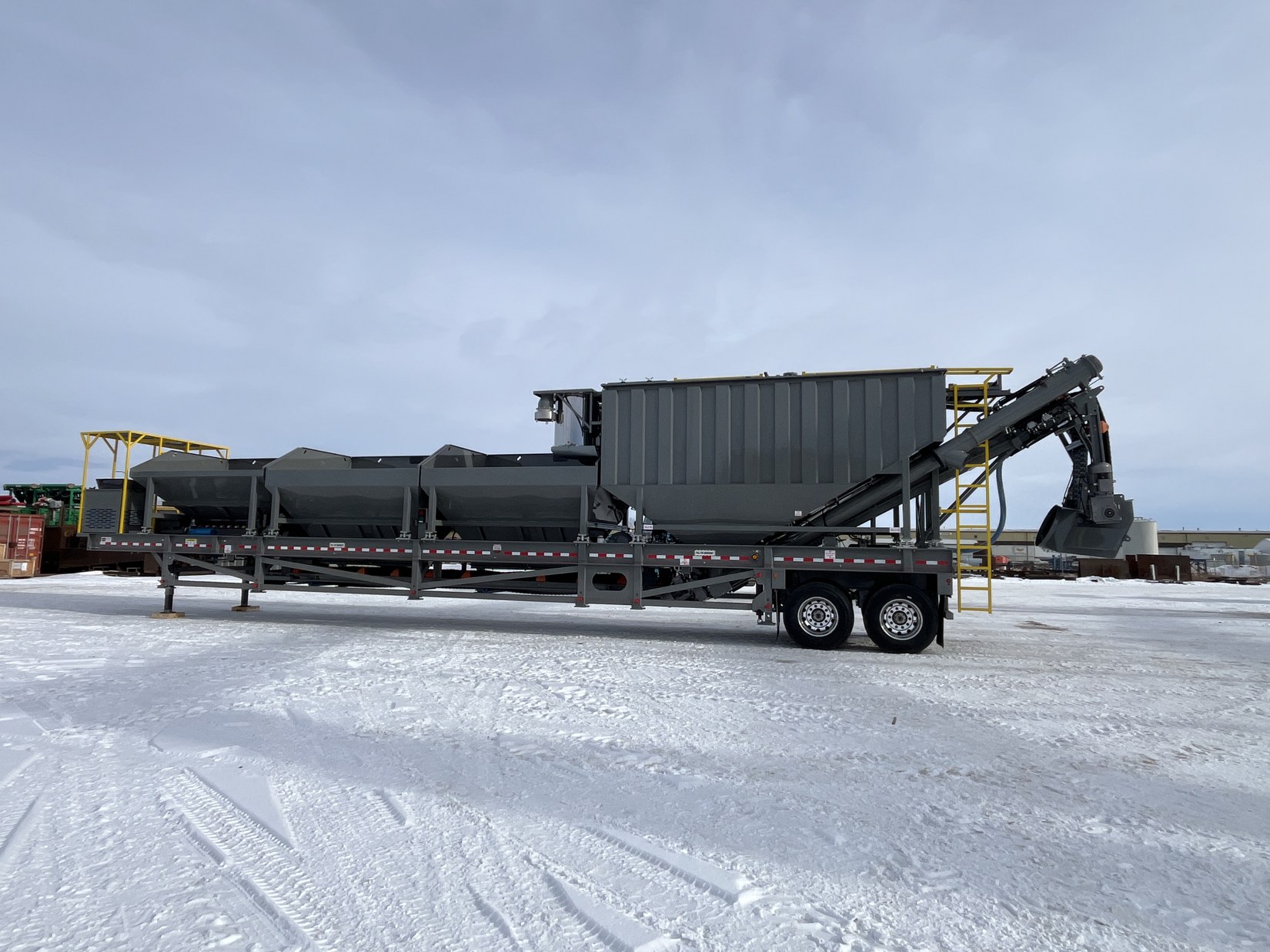

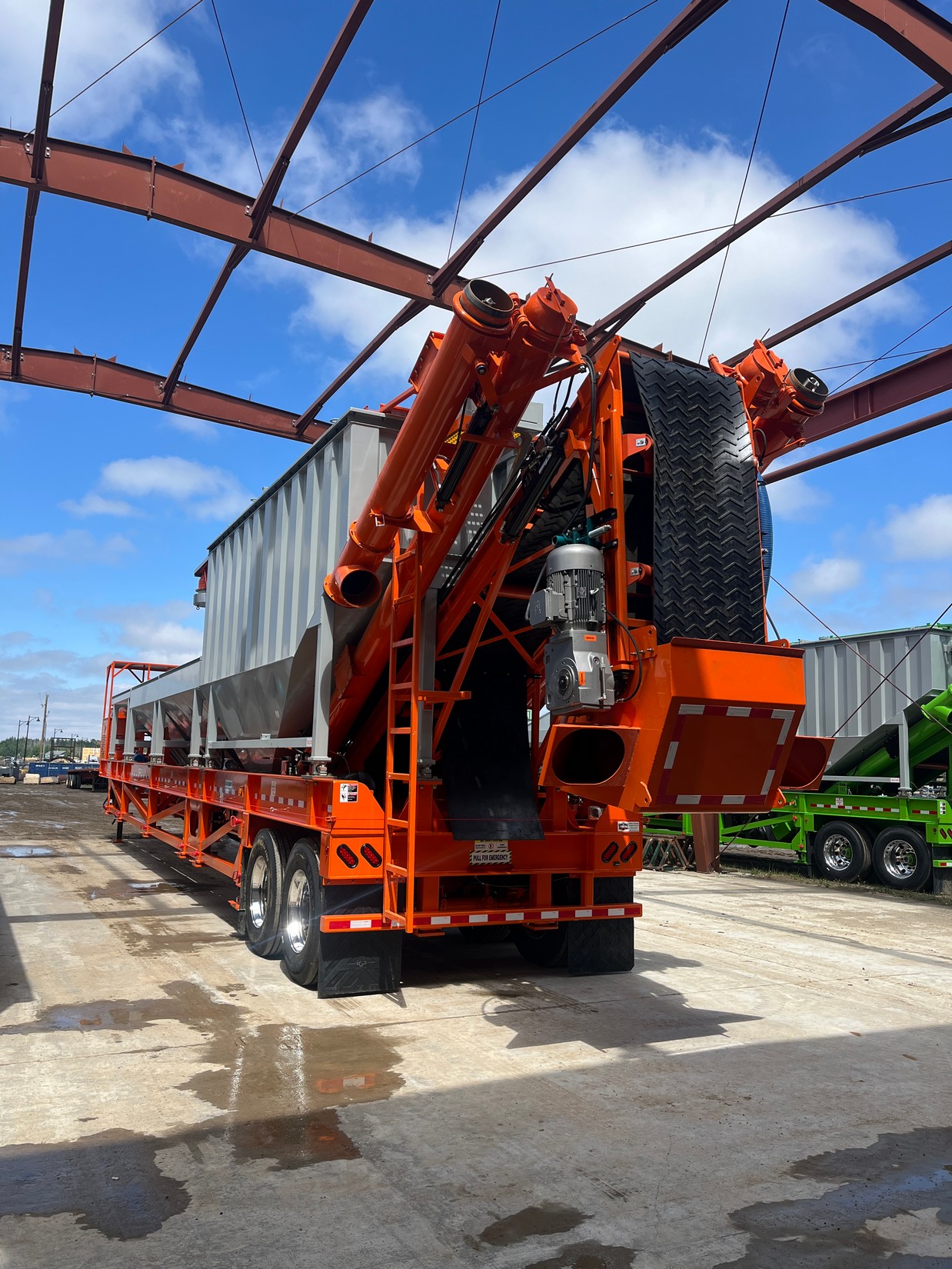

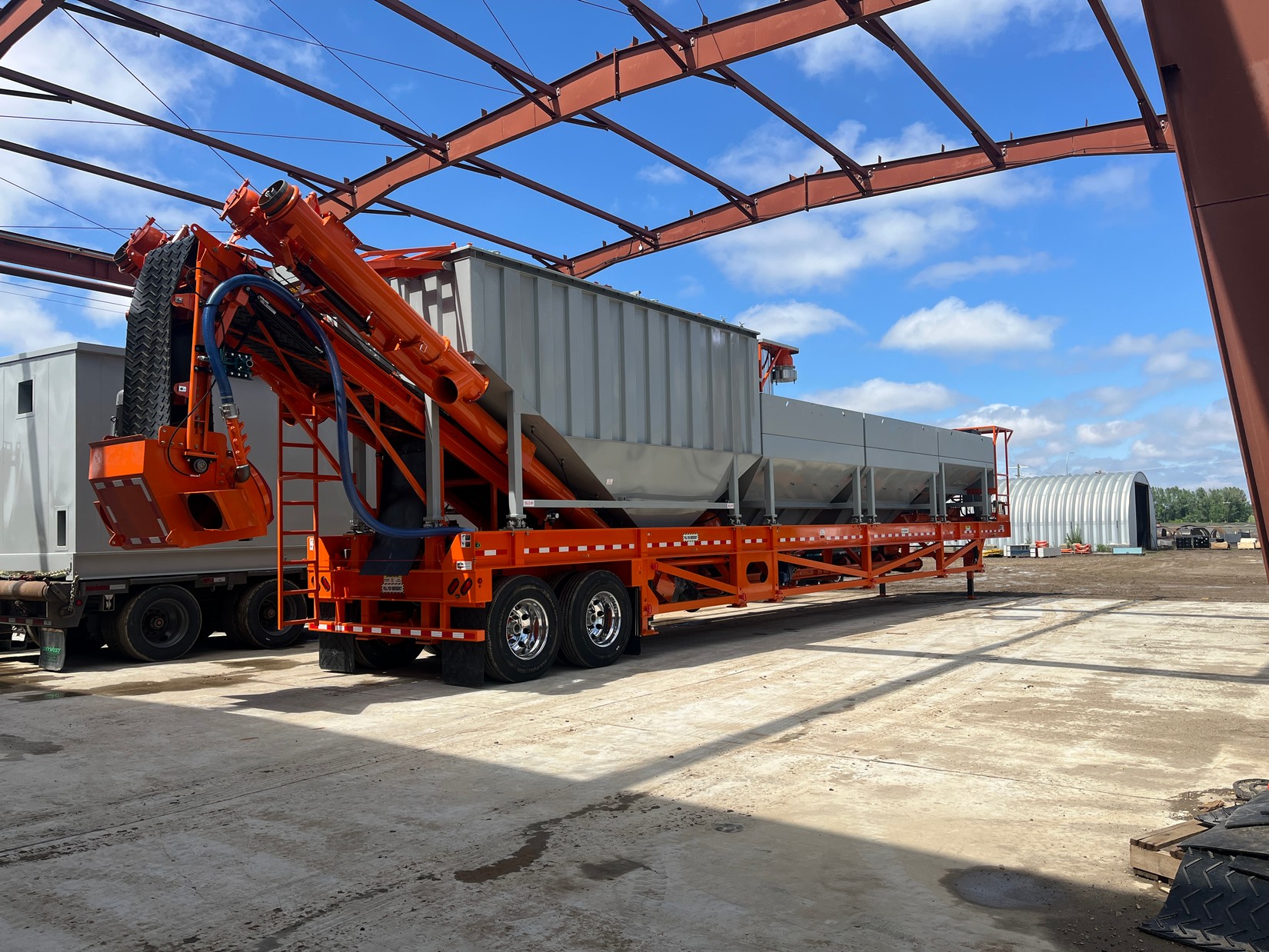

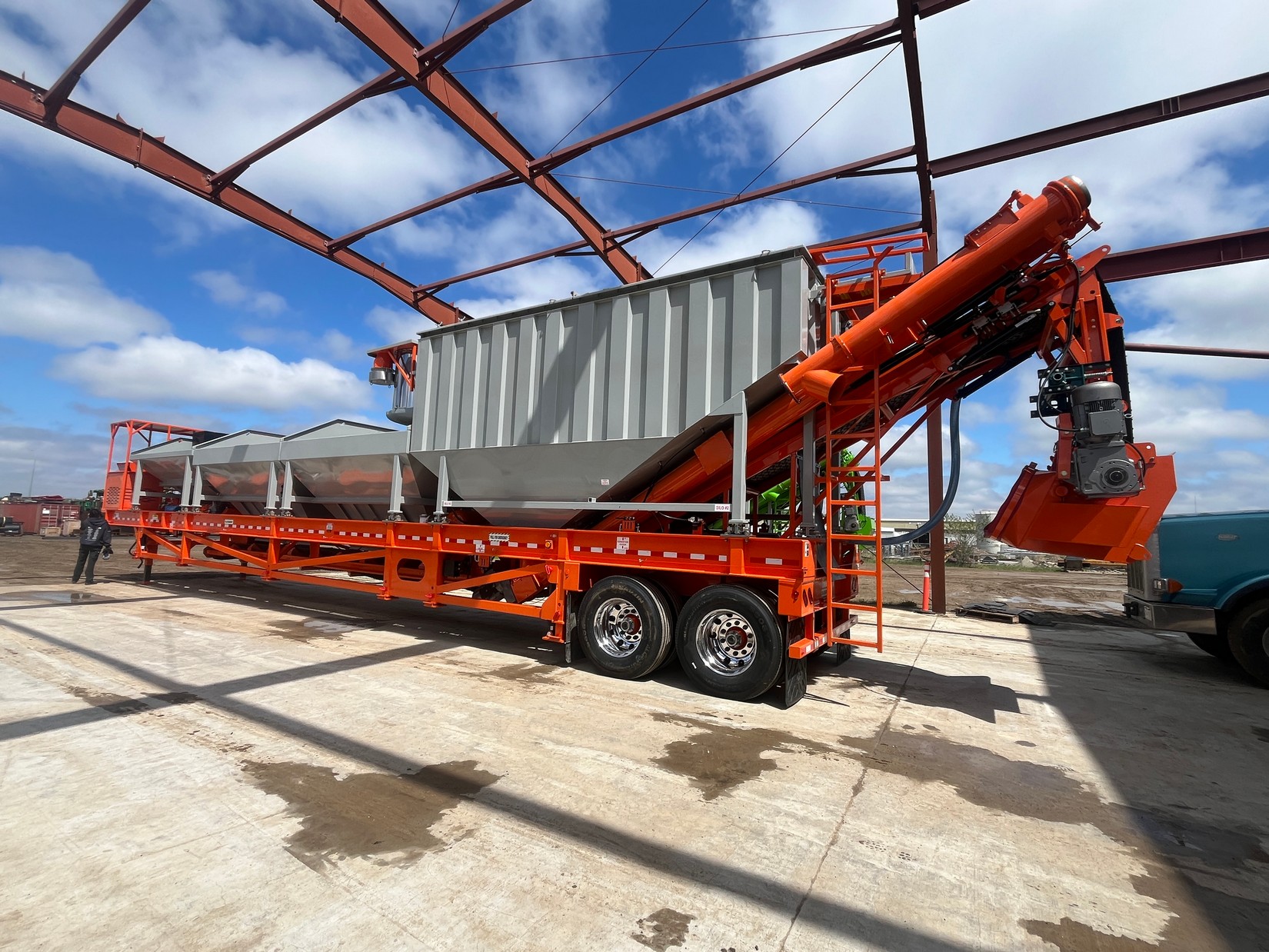

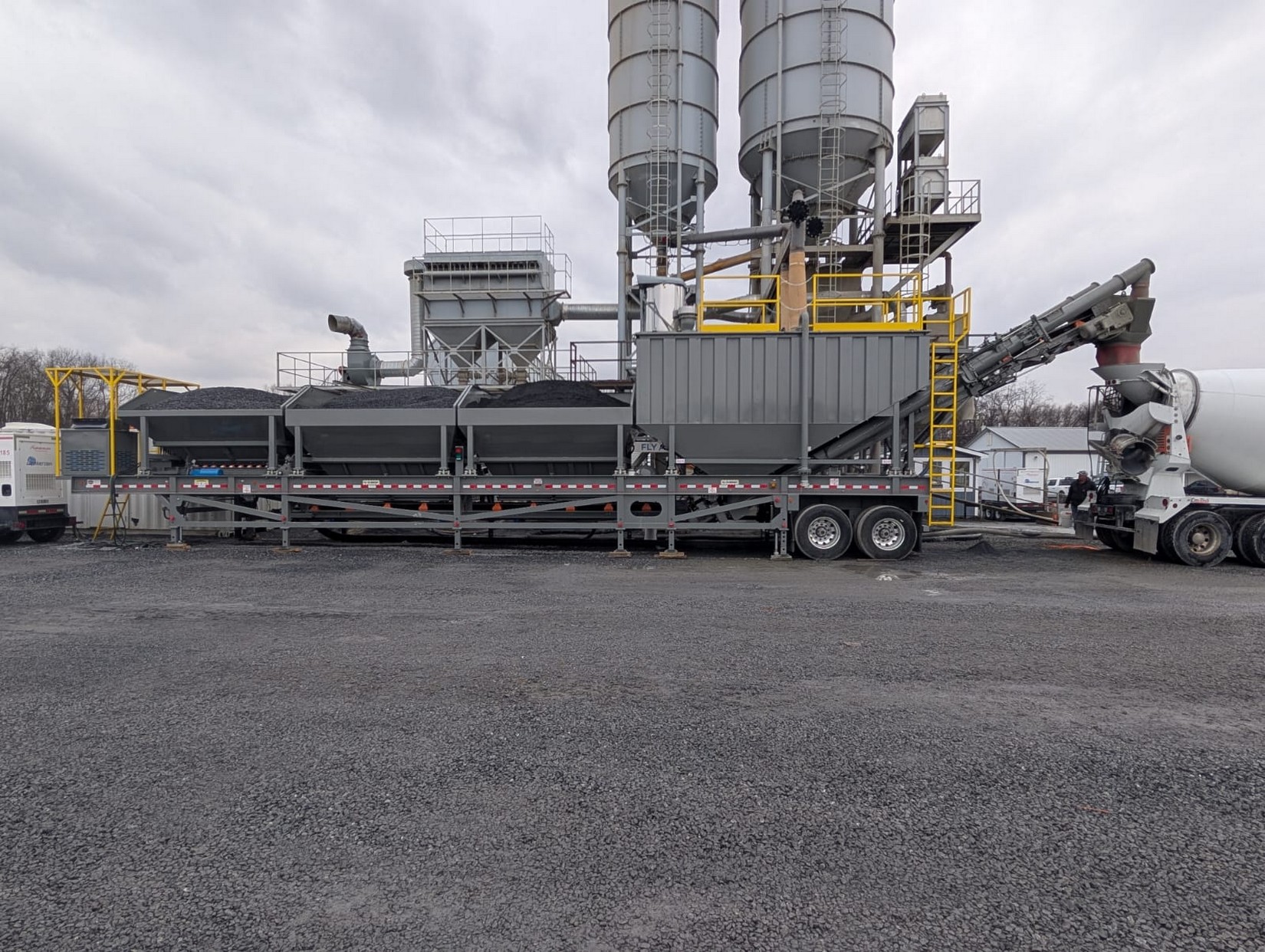

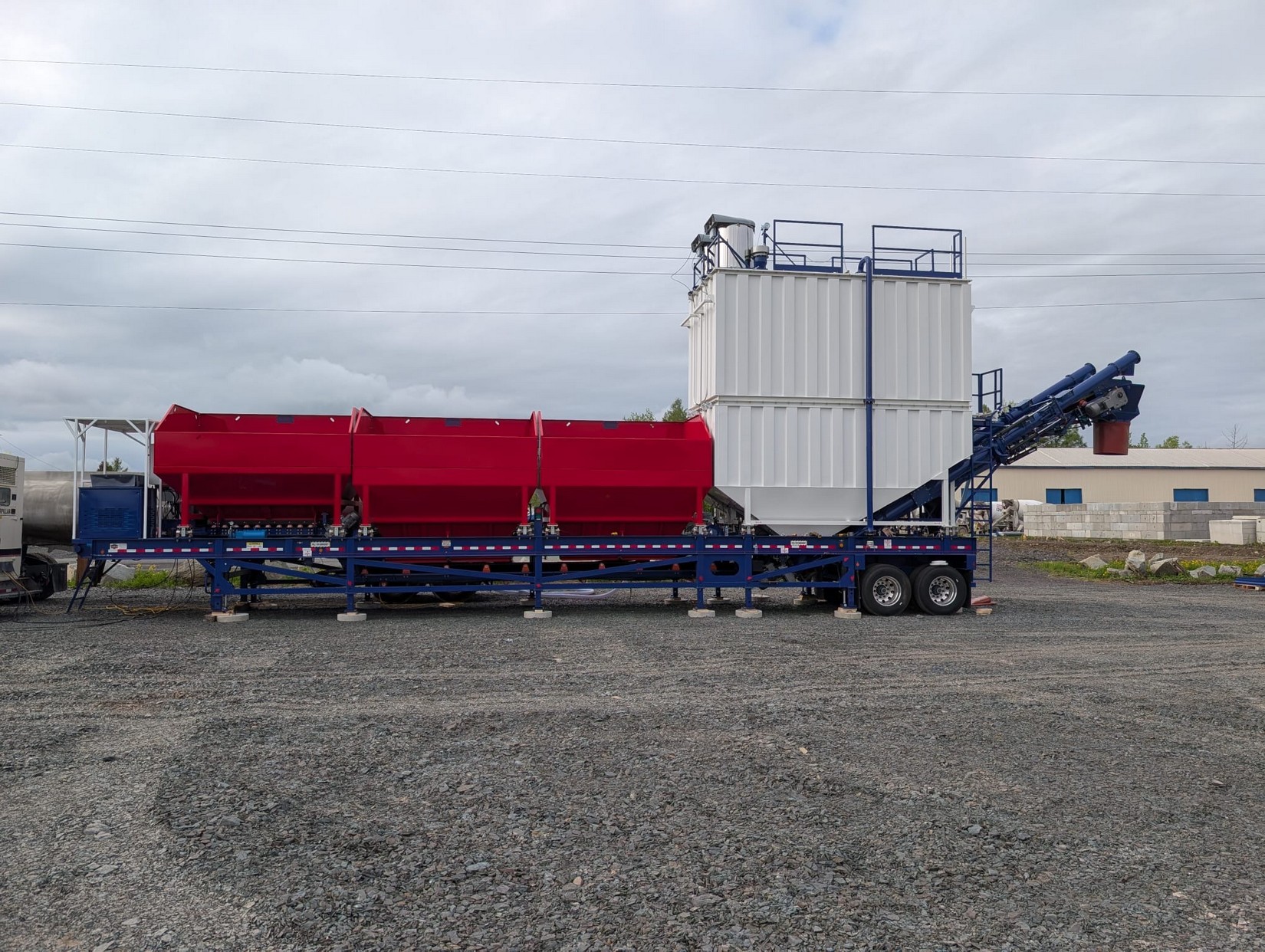

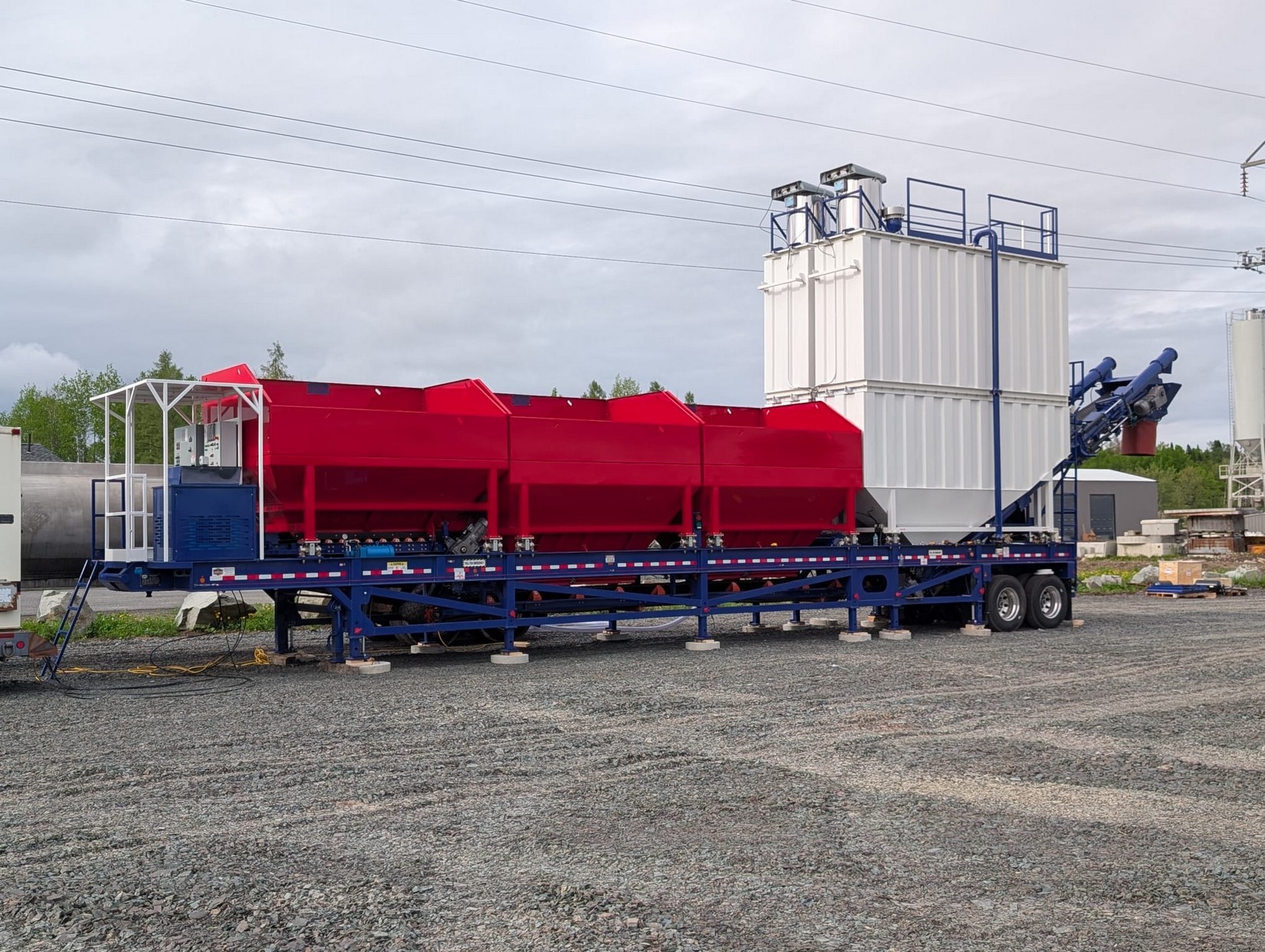

RMX 1200

The new RMX 1200 features three aggregate bins and two independently operated powder silos. Our extensive experience in batch plant manufacturing has enabled us to develop this new generation of enhanced portable batch plants. The innovative design eliminates the need for silos to be elevated, making the plant setup both safer and easier. The RMX 1200 can be loader-fed without requiring a ramp, which further reduces the operational footprint. With full 180-degree access, the plant can function as either a “back/drive in” or “drive-through” operation.

Additionally, the newly designed larger powder silos can be fitted with extensions, doubling the powder storage capacity. Coupled with an expanded aggregate delivery system, we have significantly improved the speed and efficiency of ready-mix loading. Equipped with NTEP certified load cells and industry leading automation, the RMX 1200 is ideal for DOT projects or any situation where precise quality control is essential.

The new RMX 1200 is built to be the pinnacle of portability and performance in a simple, easy to operate package.

Standard Features

Aggregate Bin no1:

  • Capacity: 26 ton (420cubic ft)
  • Four (4) NTEP certified loadcells
  • Clam gate
  • Bin vibrator pad with vibrator

Aggregate Bin no2:

  • Capacity: 26 ton (420cubic ft)
  • Four (4) NTEP certified loadcells
  • Clam gate
  • Bin vibrator pad with vibrator

Aggregate Bin no3:

  • Capacity: 24Ton (385 cubic ft)
  • Four (4) NTEP certified loadcells
  • Live bottom conveyor 24″
  • Bin vibrator pad

Dual Cement Silo:

  • Two (2) – 440cubic feet each, approx. 18 tons each
  • Two (2) 10” augers with 20 HP drives
  • Eight (8) NTEP certified compression loadcells
  • Two (2) 4” cement fill lines

Delivery Conveyor

  • Chevron 30ʺ wide belting
  • Electric 15 HP motor with gearbox
  • Belt scraper (brush style) installed

Air Compressor System:

  • 10 HP direct drive screw compressor
  • Insulated enclosure and air dryer

Chassis:

  • Dual axle, air ride suspension
  • Tires: 11R, 22.5
  • Air brakes / maxi pots,
  • D.O.T. Standard lighting
  • Anti lock brake system

Water System:

  • 3” badger water meter with actuated valve
  • 3″ pump and electric motor

Automation

  • Marcotte M batch control system
